pg_trgm
tags :
Postgres Extension #
- The pg_trgm module from Postgres searches for similar strings based on trigram matching.
- Trigrams in pg_trgm are groups of three characters that ignore non-word characters.
- The similarity of two given strings can be indicated by how many trigrams they share.

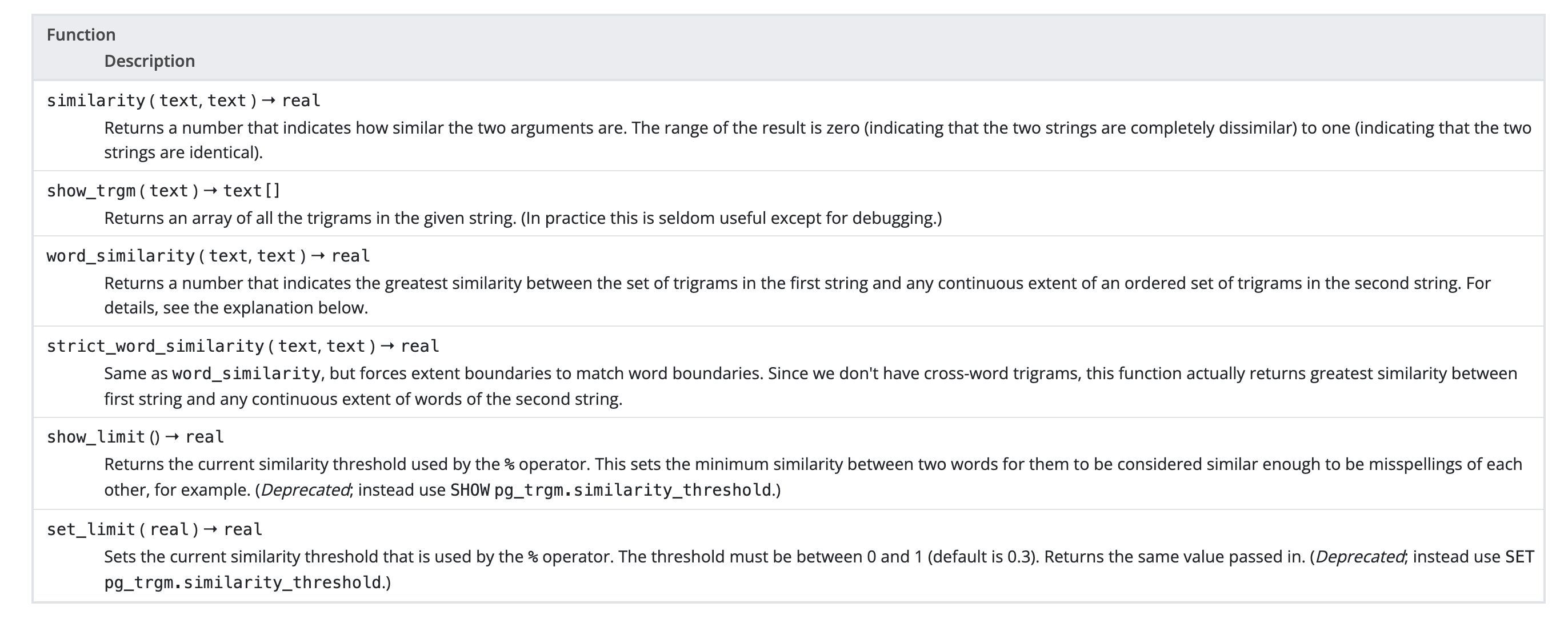

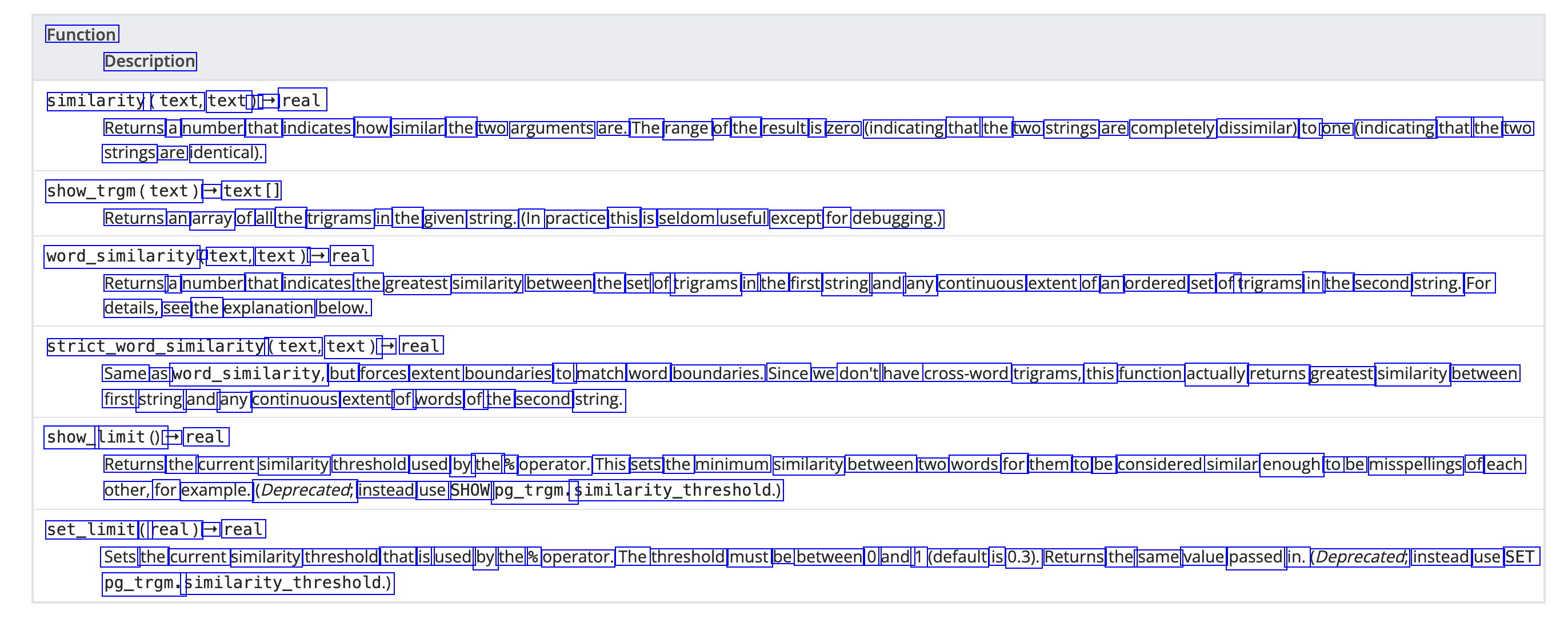

The pg_trgm module provides functions and operators for determining the similarity of alphanumeric text based on trigram matching, as well as index operator classes that support fast searching for similar strings.
This module is considered “trusted”, that is, it can be installed by non-superusers who have CREATE privilege on the current database.
Trigrams in a given string #

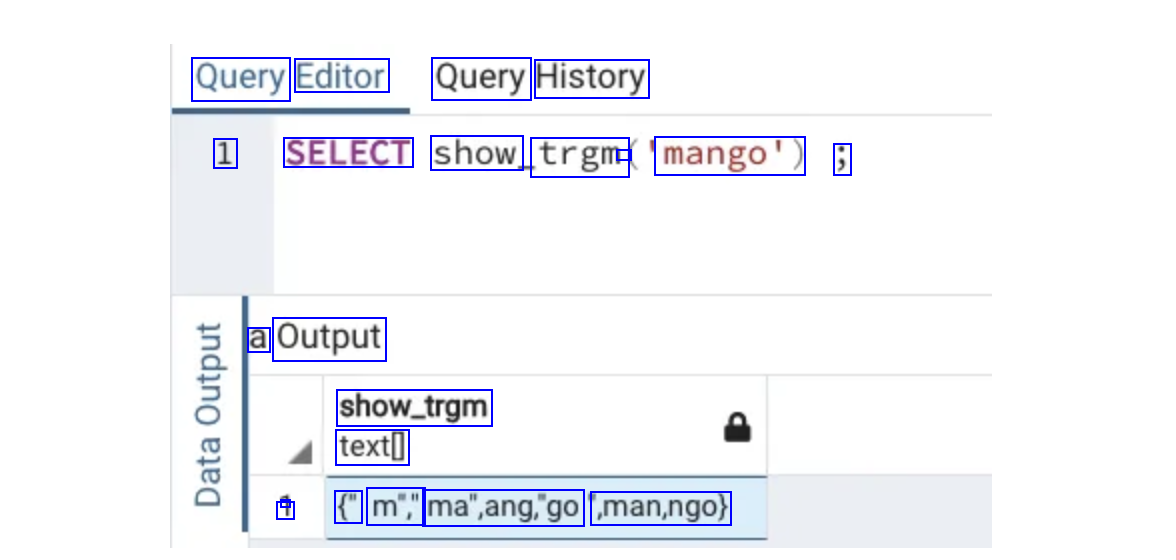

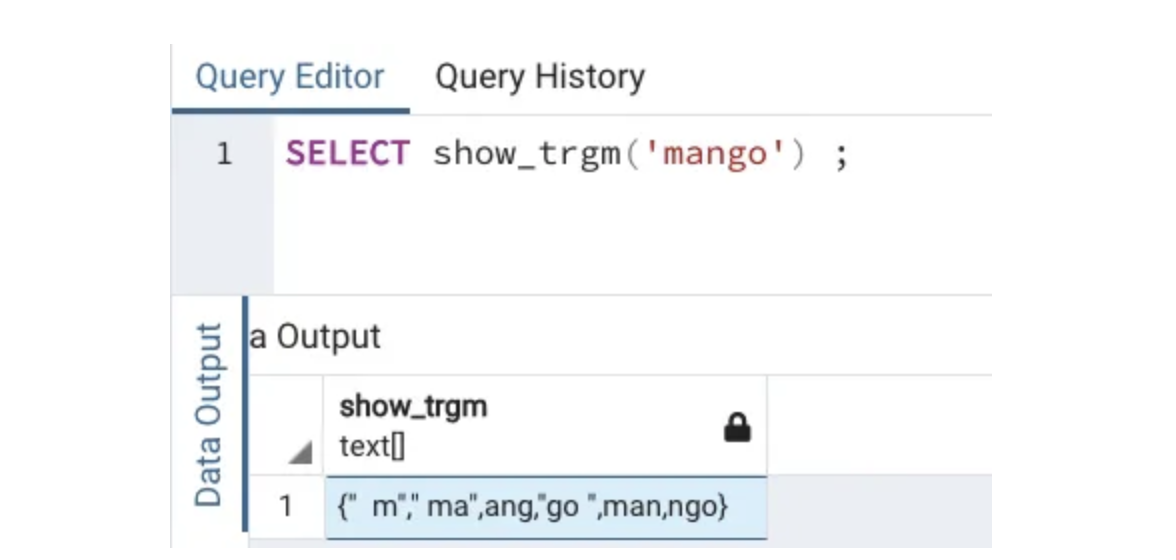

It is always easier to understand a concept with examples. The set of trigrams in the string “mango” is
m, ma, man, ang, ngo, go
The ‘show_trgm’ function returns all trigrams in a given string, and it is often used for debugging in practice.

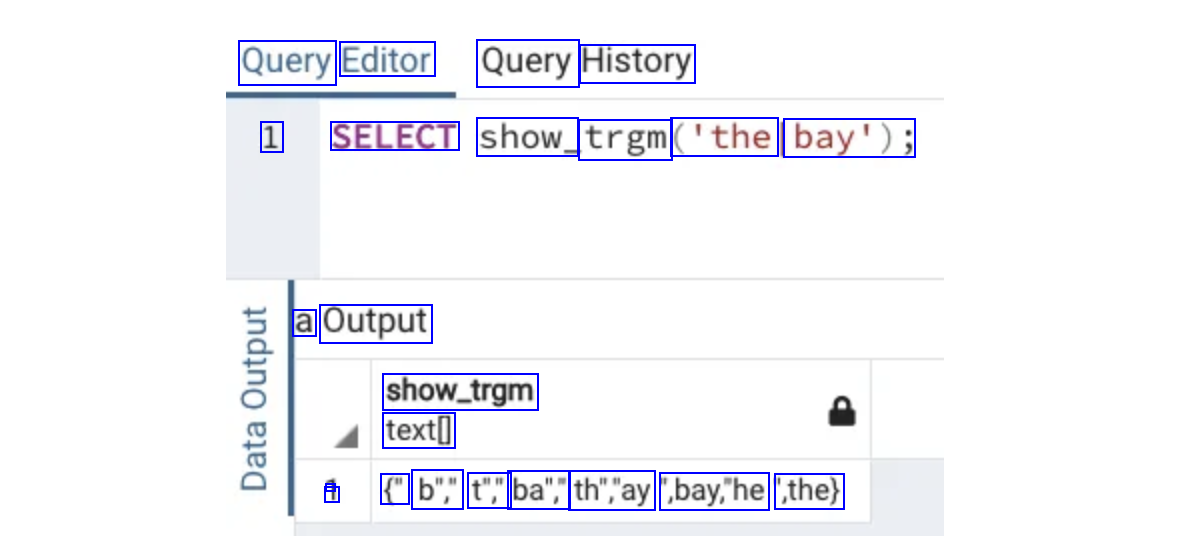

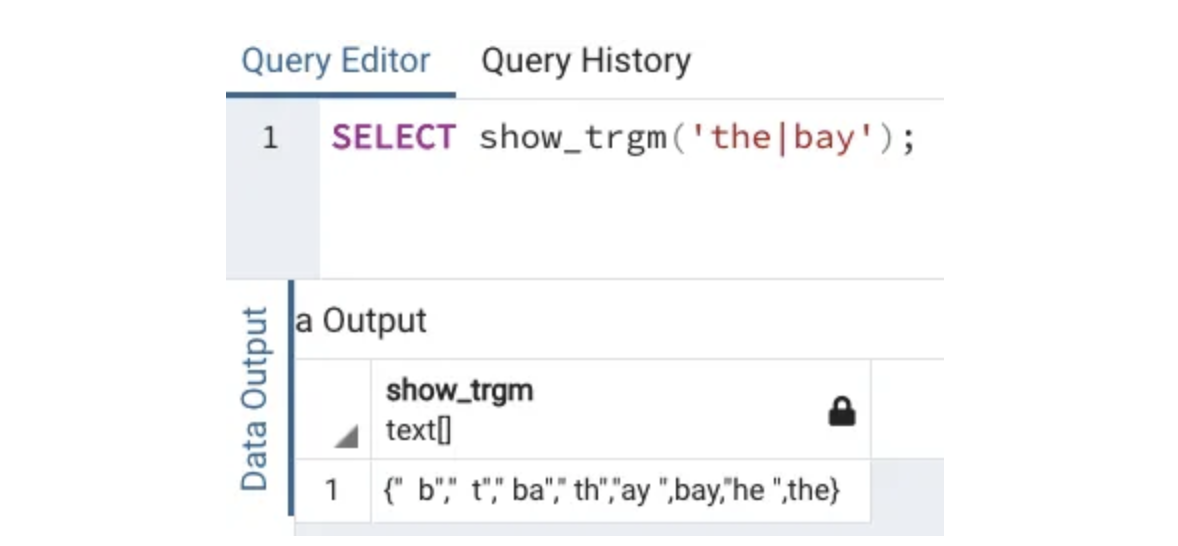

In another example, “the|bay”, we can see that only alphanumeric text is considered, which are
t, th, the, he, b, ba, bay, ay
Similairty score by pg_trgm #

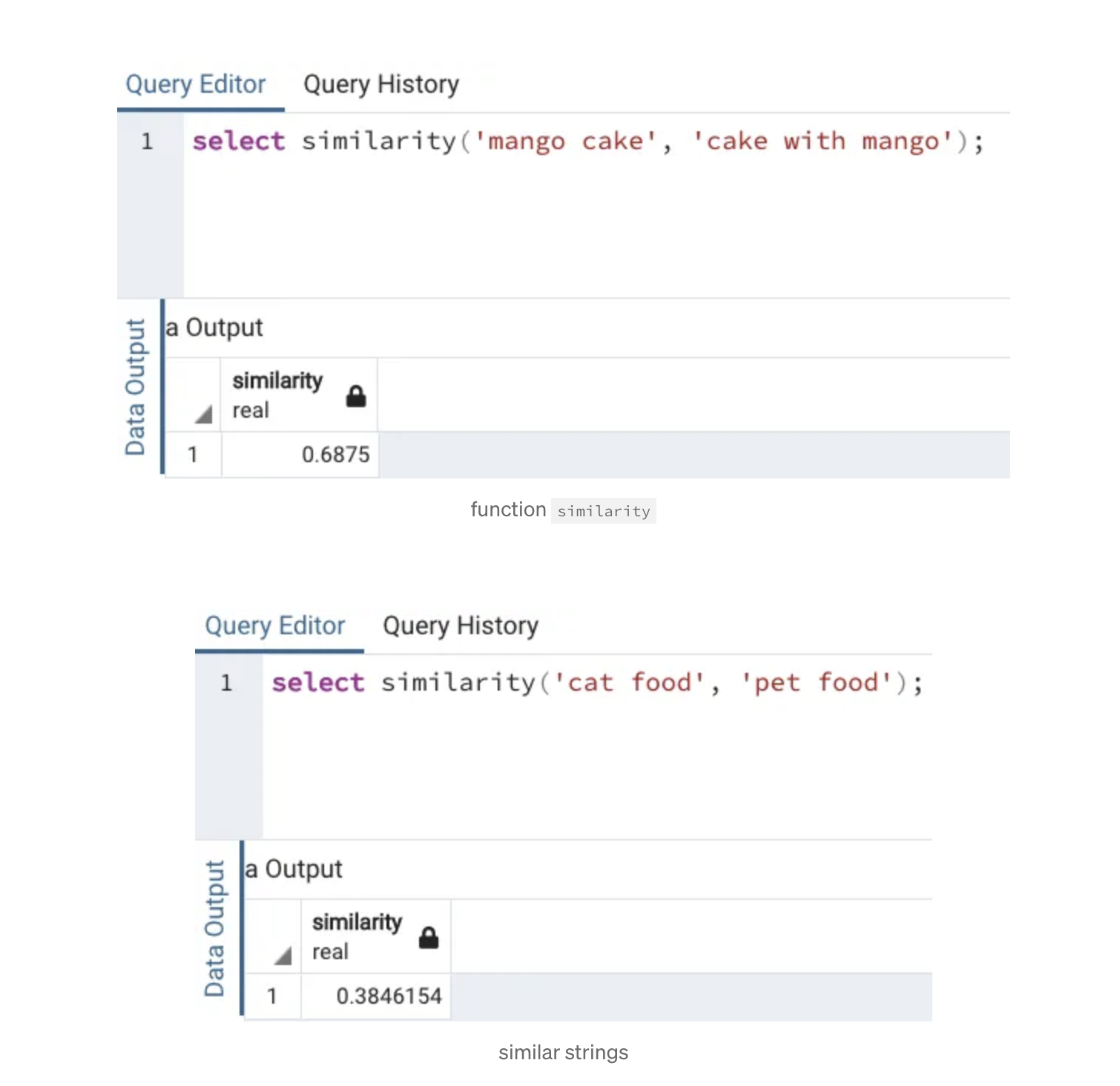

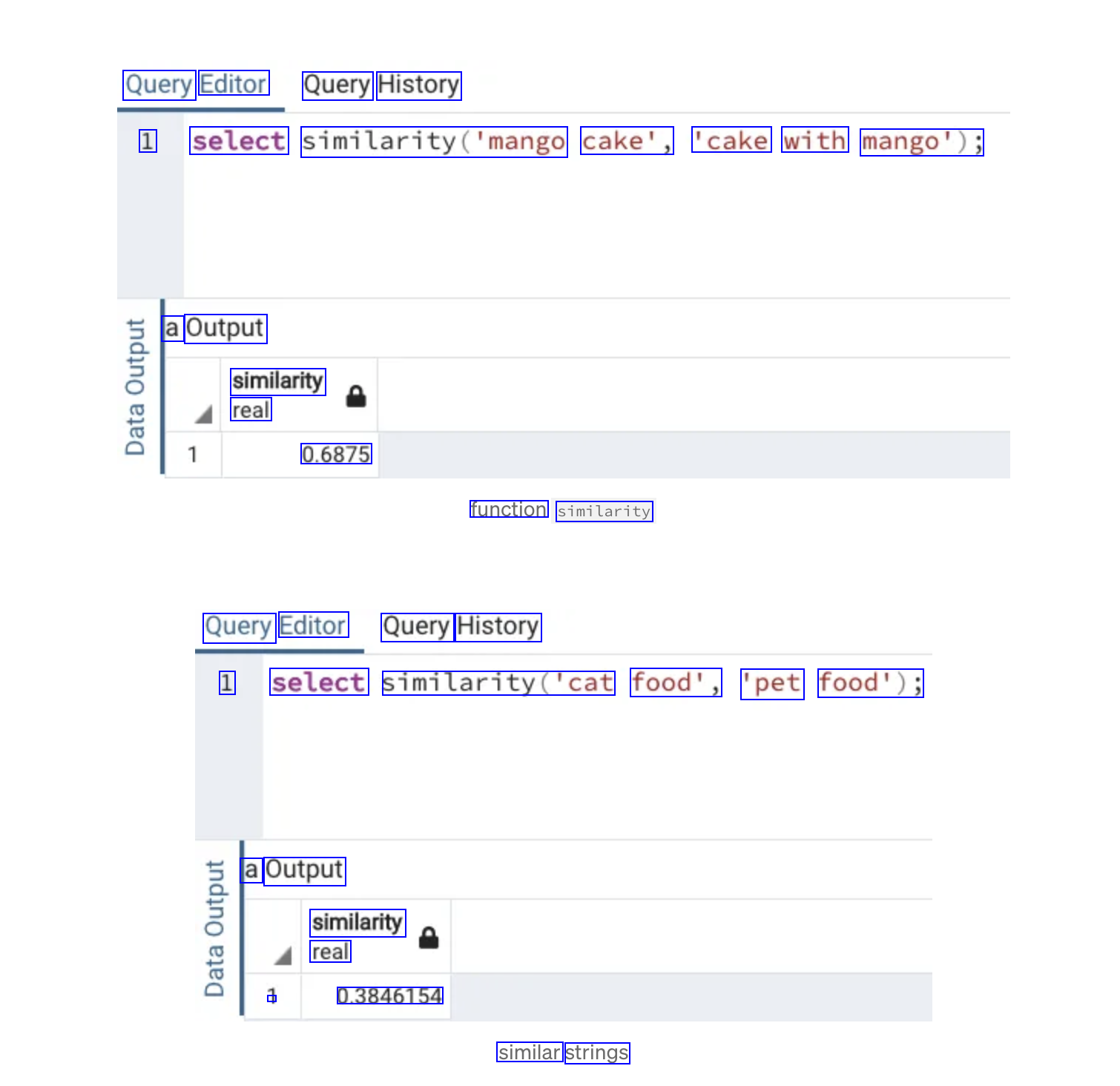

The similarity score of two given strings can be measured by the number of trigrams they share. For example, the similarity score between “mango cake” and a string in a different order “cake with mango” is 0.68, “cat food” and “pet food” is 0.38, “coconuts” and the misspelled word “ciconuts” is 0.5.
Fuzzy search with pg_gram #

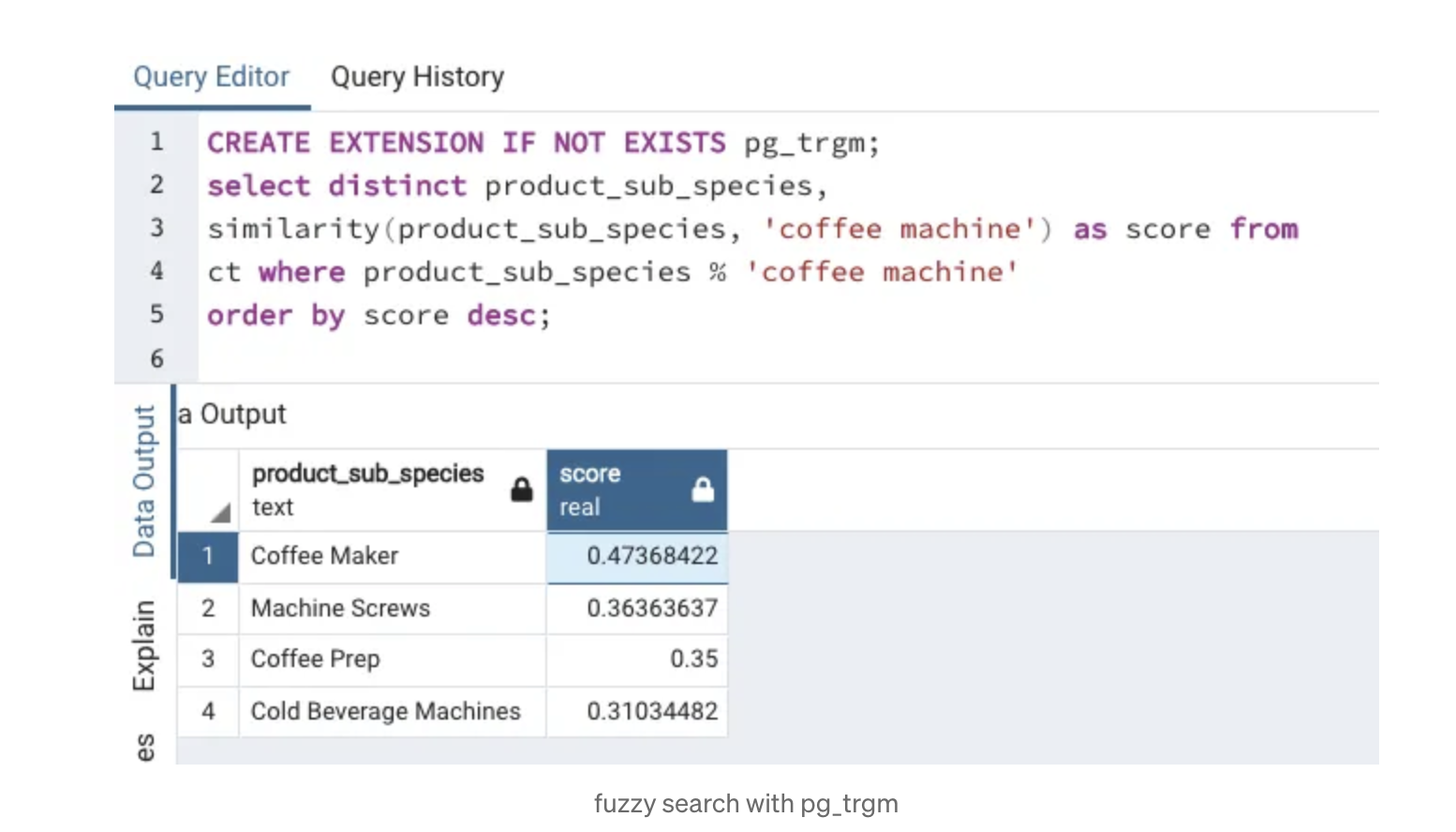

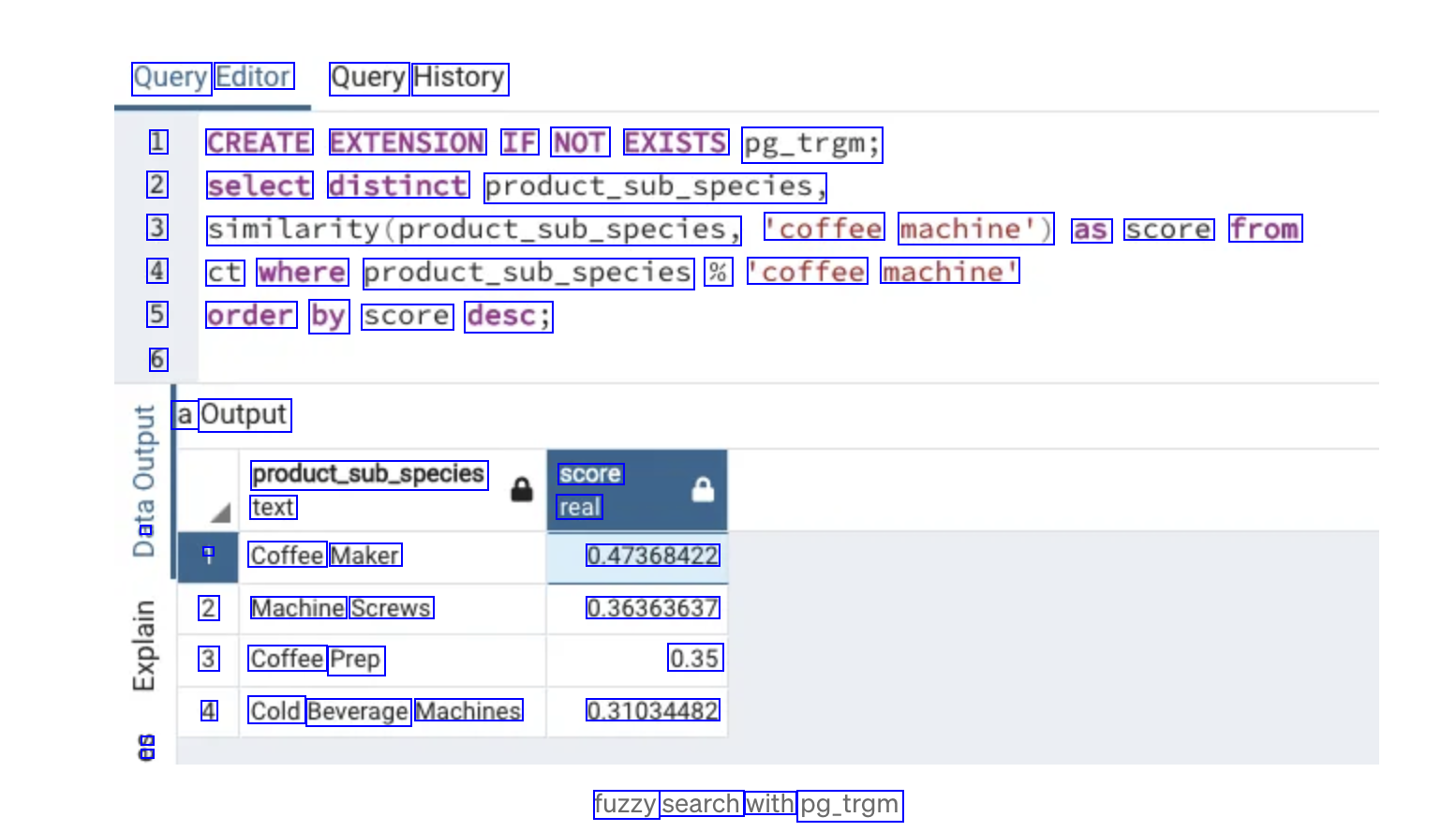

First, create an extension for pg_trgm if it hasn’t been loaded. Then search for targets that are similar to ‘coffee machine’ and sort the results in descending order on similarity scores. As illustrated in the screenshot below, ‘coffee maker’ is the most similar product to ‘coffee machine’.
CREATE EXTENSION IF NOT EXISTS pg_trgm;
select distinct product_sub_species,
similarity(product_sub_species, 'coffee machine') as score from
ct where product_sub_species % 'coffee machine'
order by score desc;

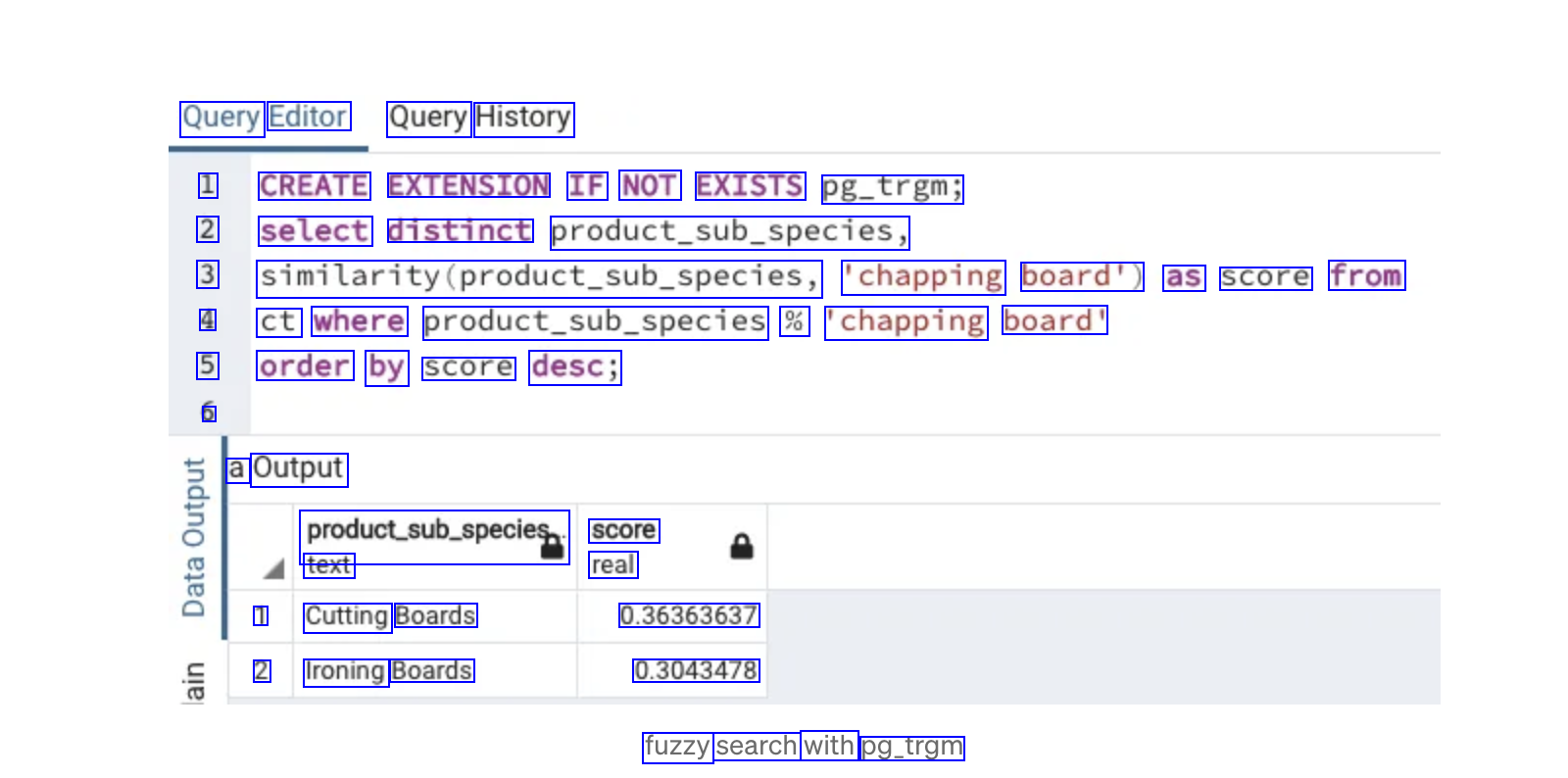

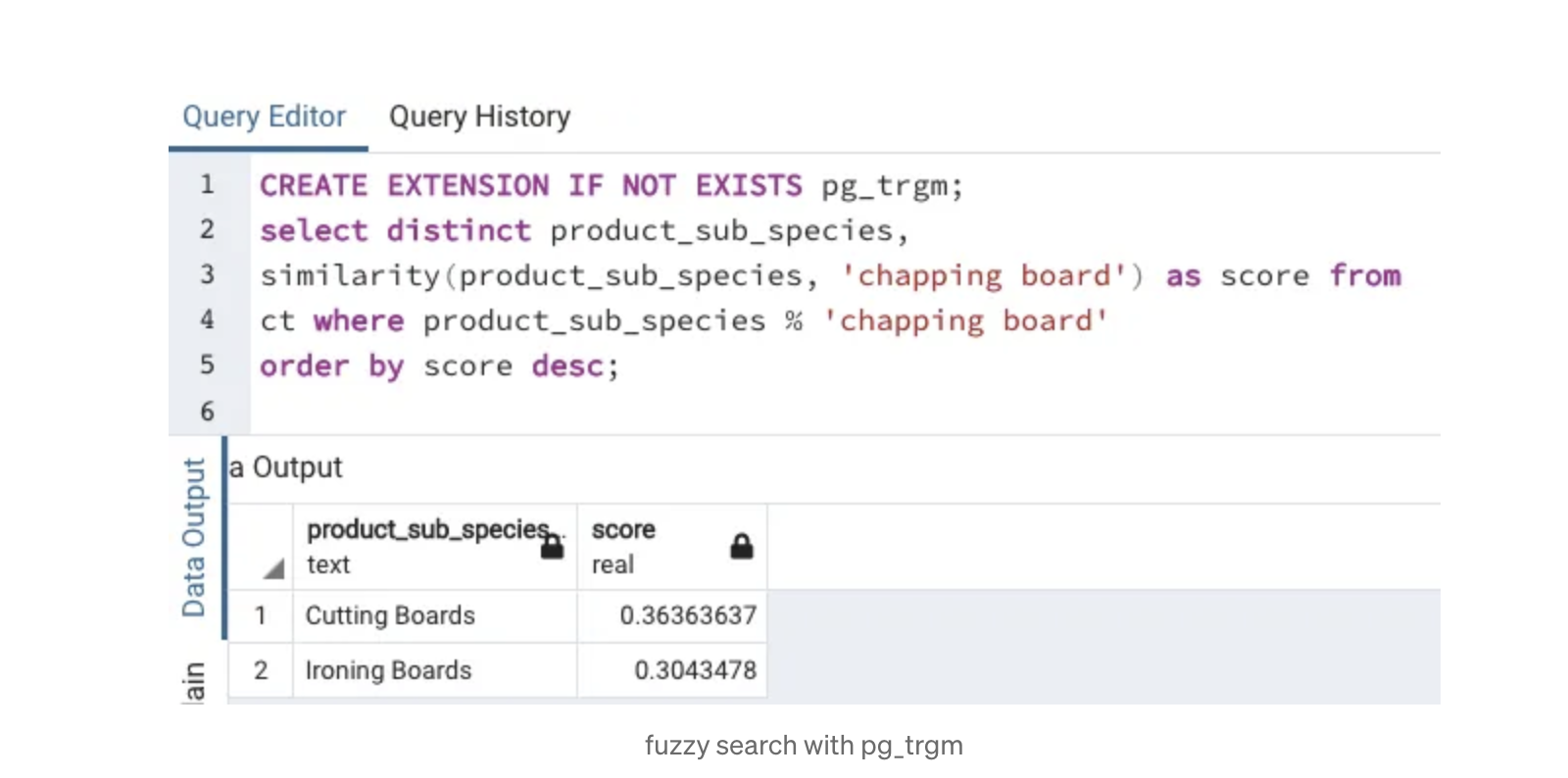

Let’s take a look at another example with a typo in the query target. The user wanted to search for “chopping board” but entered “chapping board” instead. We can see that the pg_trgm search is able to return “cutting boards” as the closest match and it is exactly what the user wants.
What are the limitations of fuzzy search in Postgres #
There are two main limitations in Postgres’s fuzzy search methods. First, the string matching in Postgres is not a semantic-based (Semantic Search) approach. Both pg_trgm and Levenshtein distance, or soundex, metaphone are character-level comparisons. For example, a SQL query search for “Dog Chews” will not find “Pet Treat” due to the lack of common trigrams.
Second, the fuzzy match in Postgres cannot be applied in a supervised learning scenario. For example, there are 2 datasets with some common columns: “employee_name”, “email”, and “address”. And we need to pair the employees from these datasets to join info about the same person. A typical solution is to compute the similarity score for each column, then run a random forest or other classifiers to learn the underlying rules to detect the same person from different datasets. This is beyond Postgres.
Extension present In Fully Managed services by #
GCP #
DO #
OCI #
Implementing Autocompletion Django #
OCR of Images #
