OAuth2 in OCI

OAuth2 in OCI

June 21, 2024 | seedling, permanent

tags :

in #

Creating Domain, #

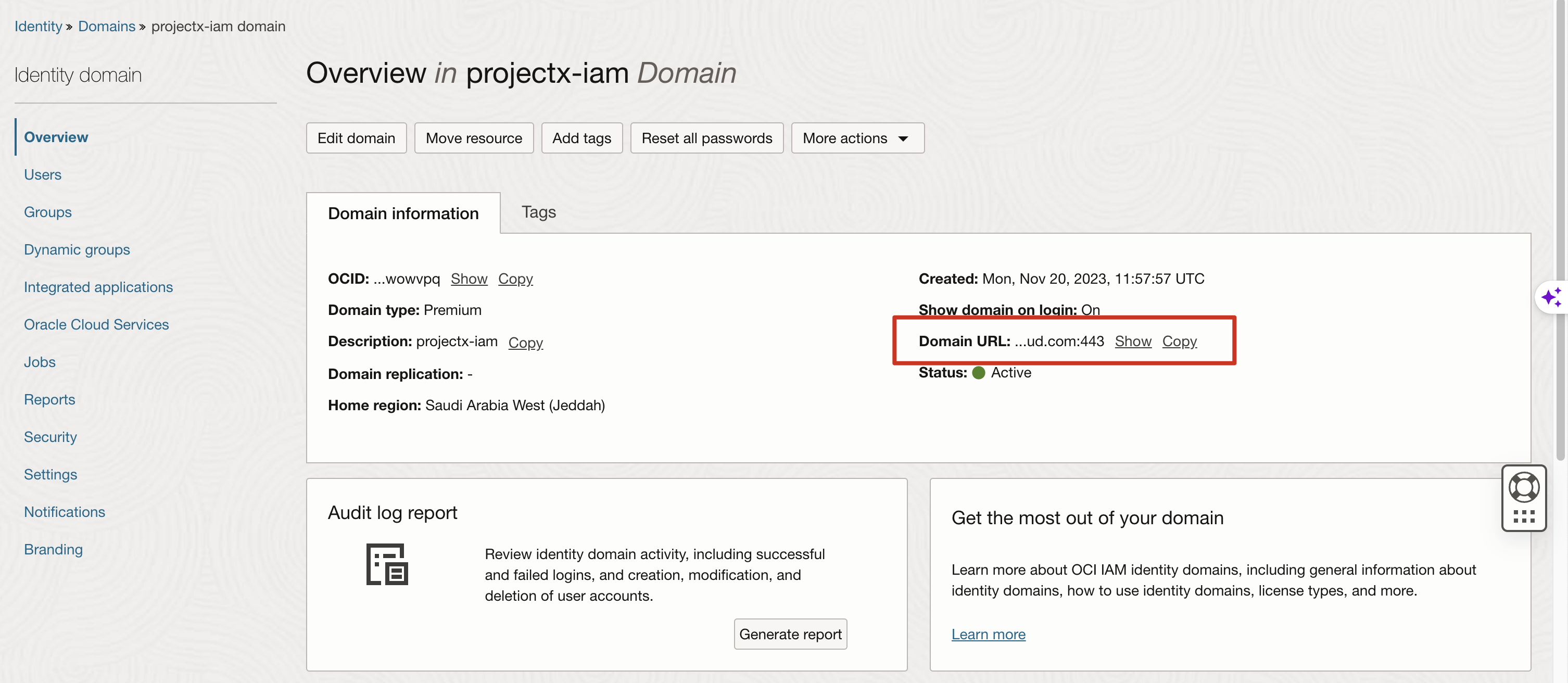

Get the Domain URL

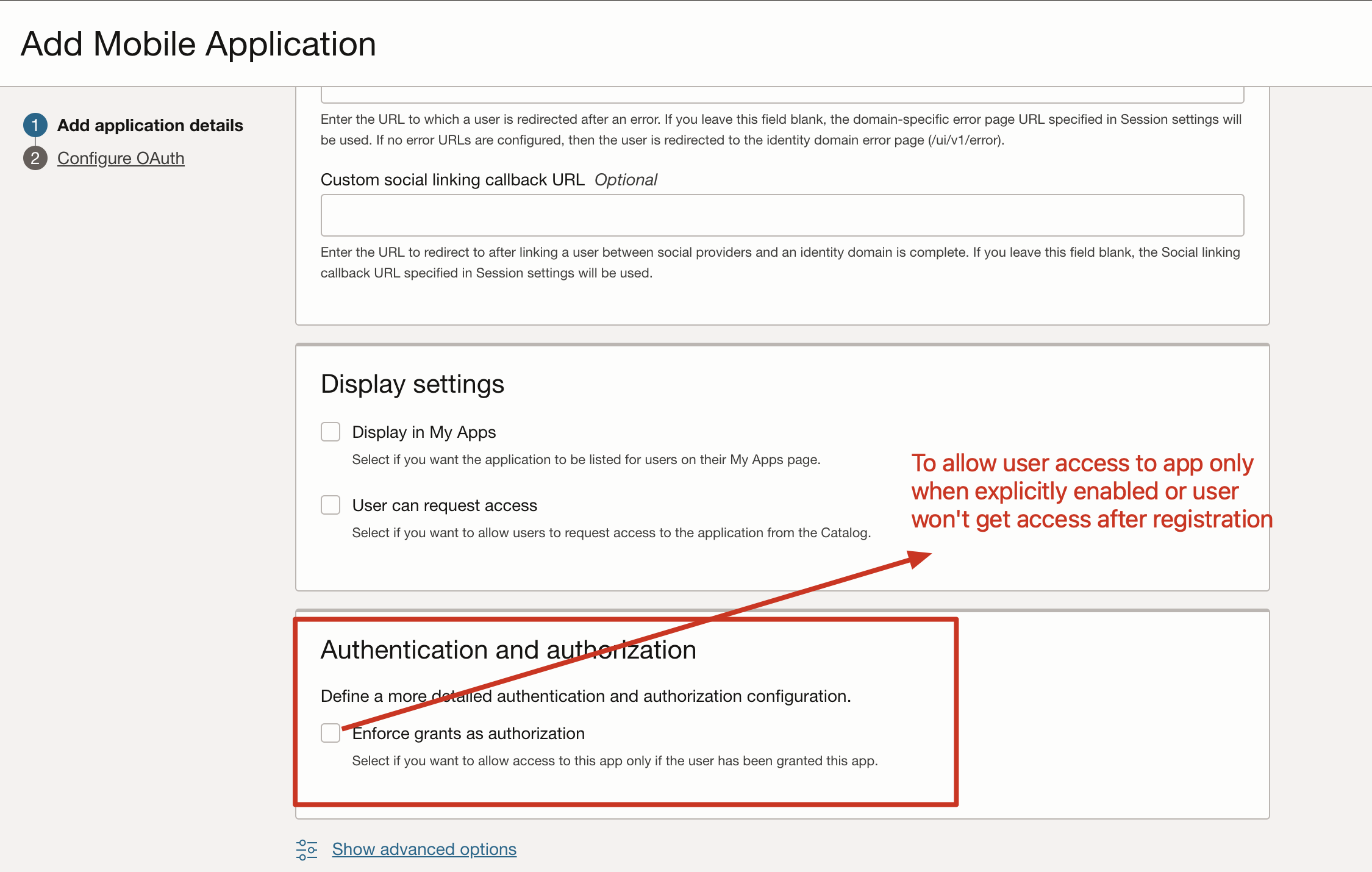

Mobile Application #

Screen shots #

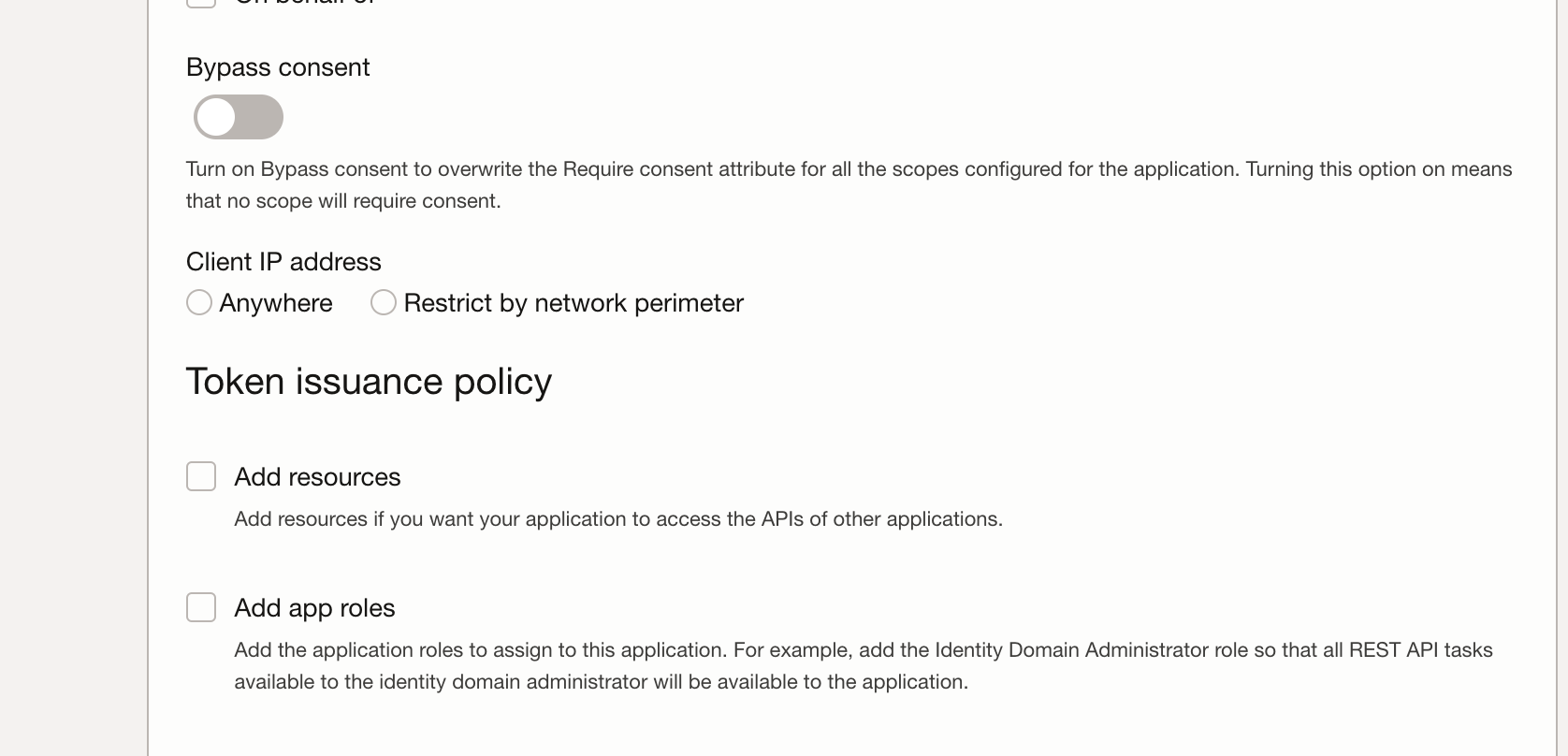

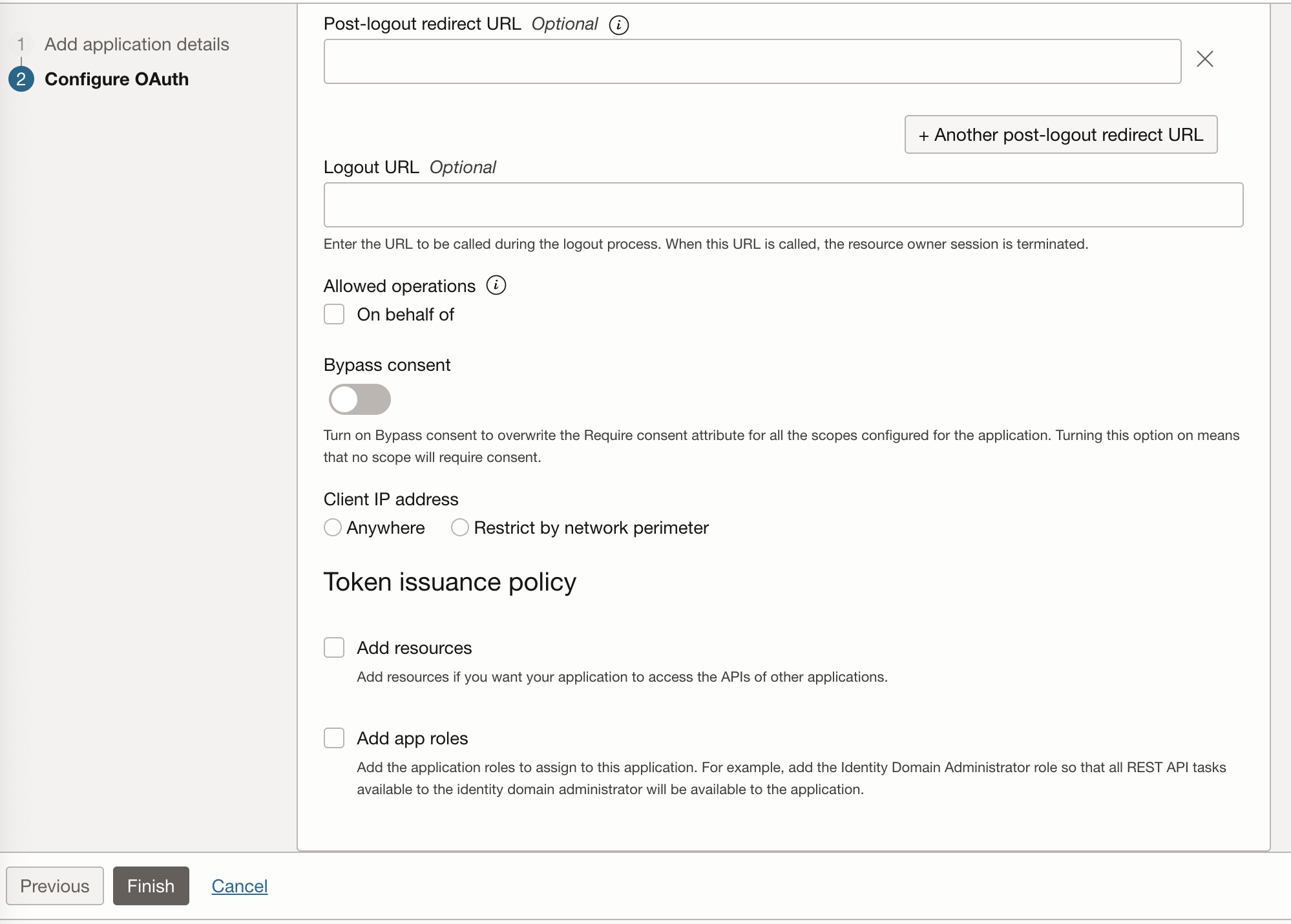

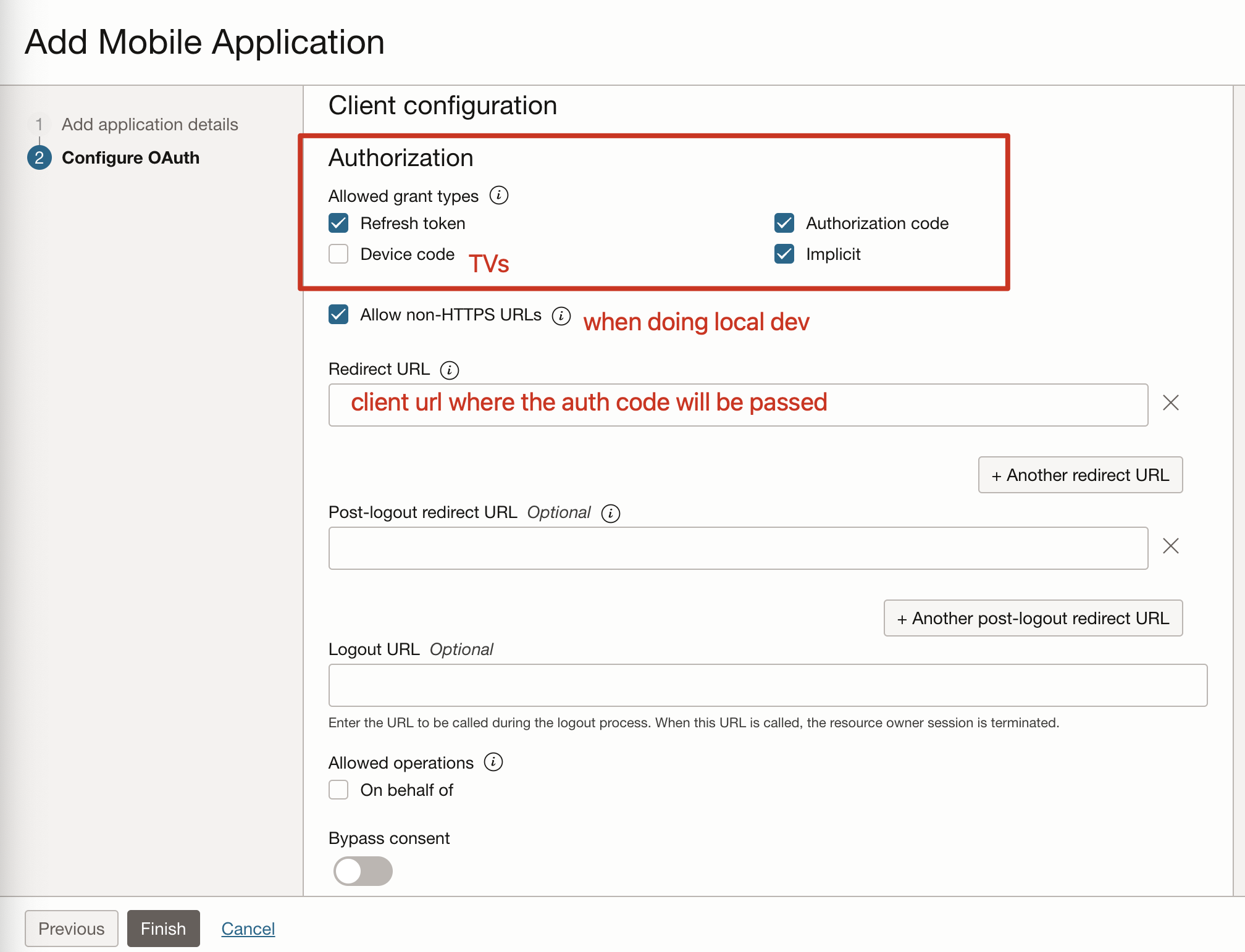

  • Client Configuration

Creating tokens #

Setting up for token authorization #

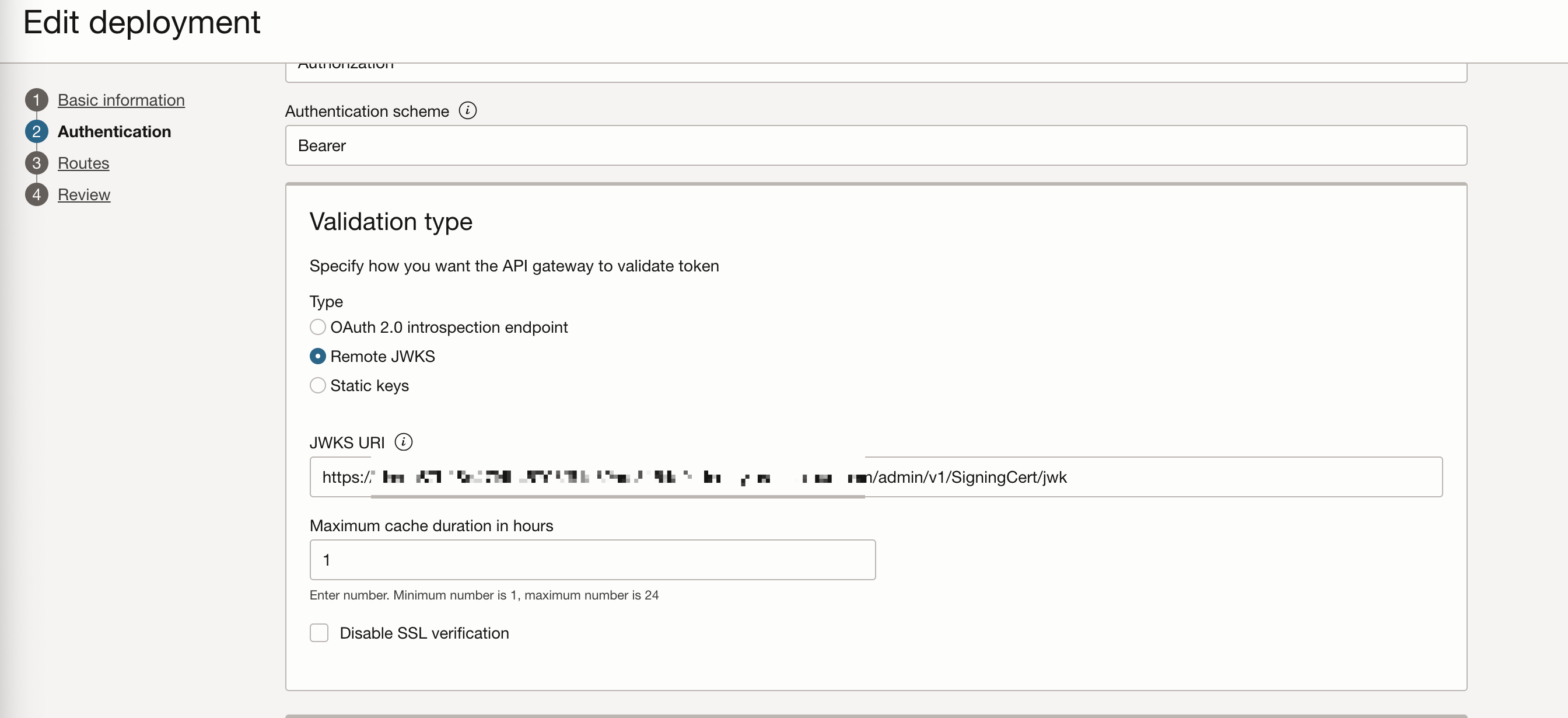

In the deployment authentication configuration #

Add path to the “admin/v1/SigningCert/jwk” identity domain endpoint: e.g.: https://idcs-xxxxxxx.identity.oraclecloud.com/admin/v1/SigningCert/jwk

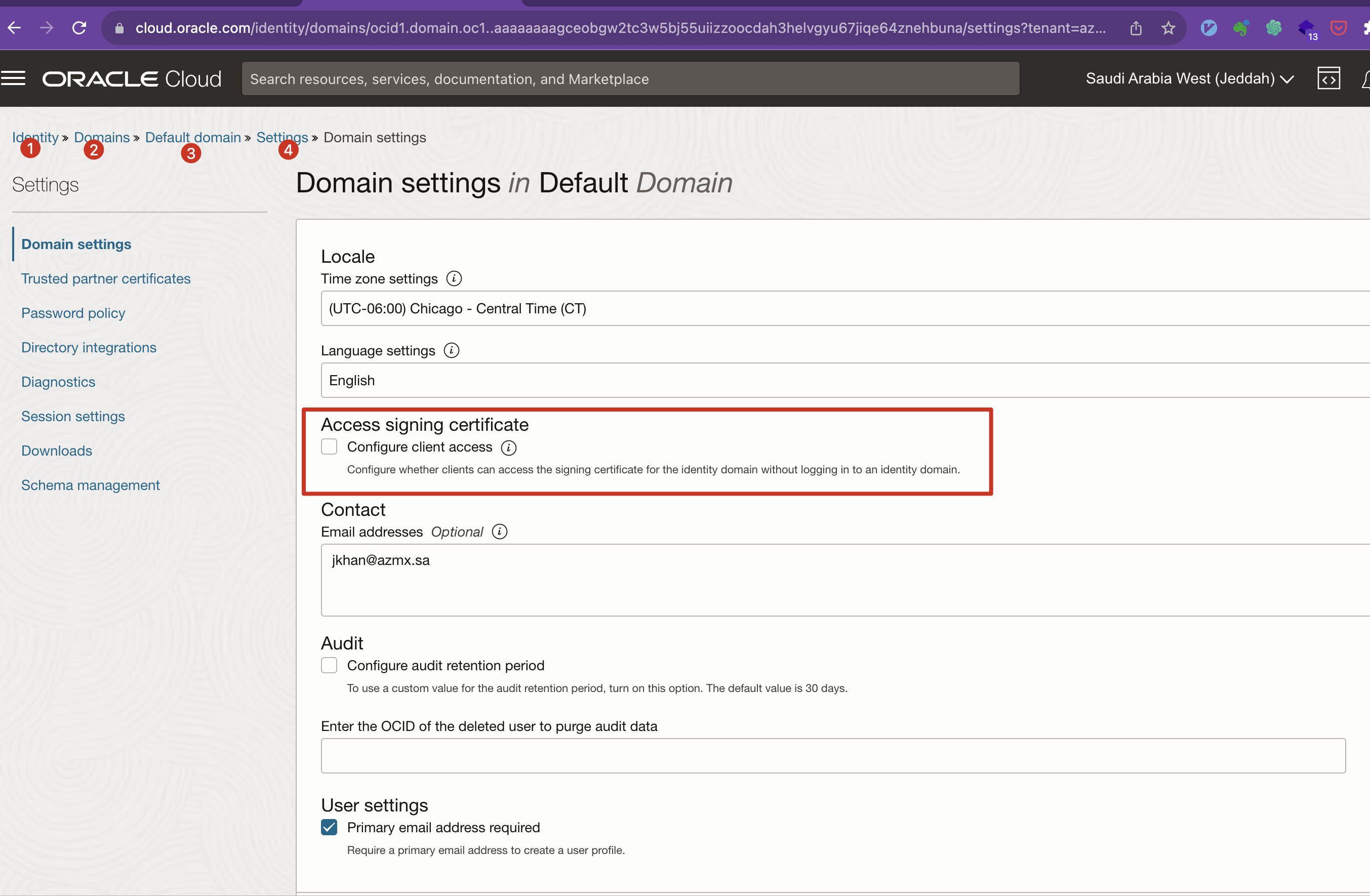

  1. Enable this jwk access from the client

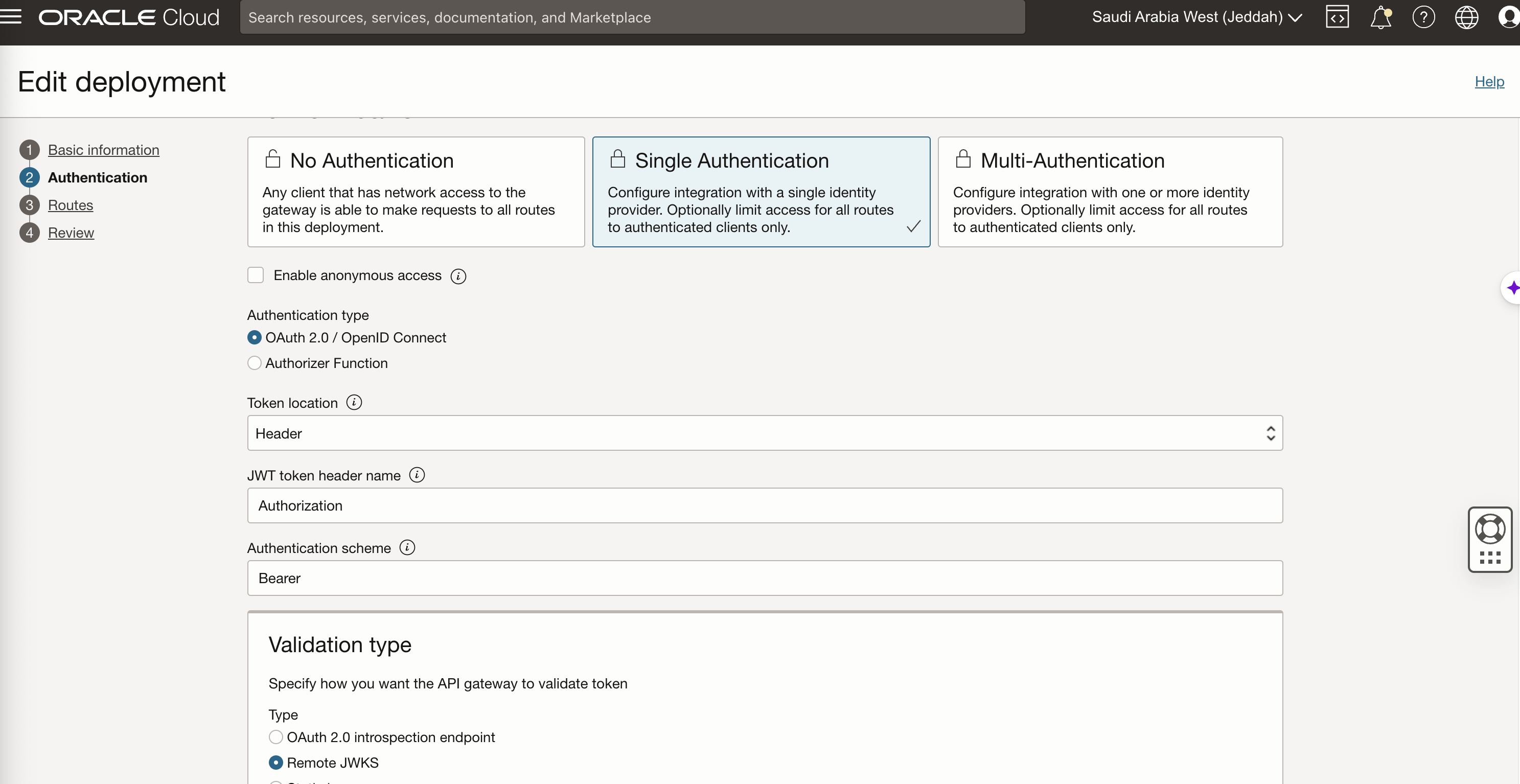

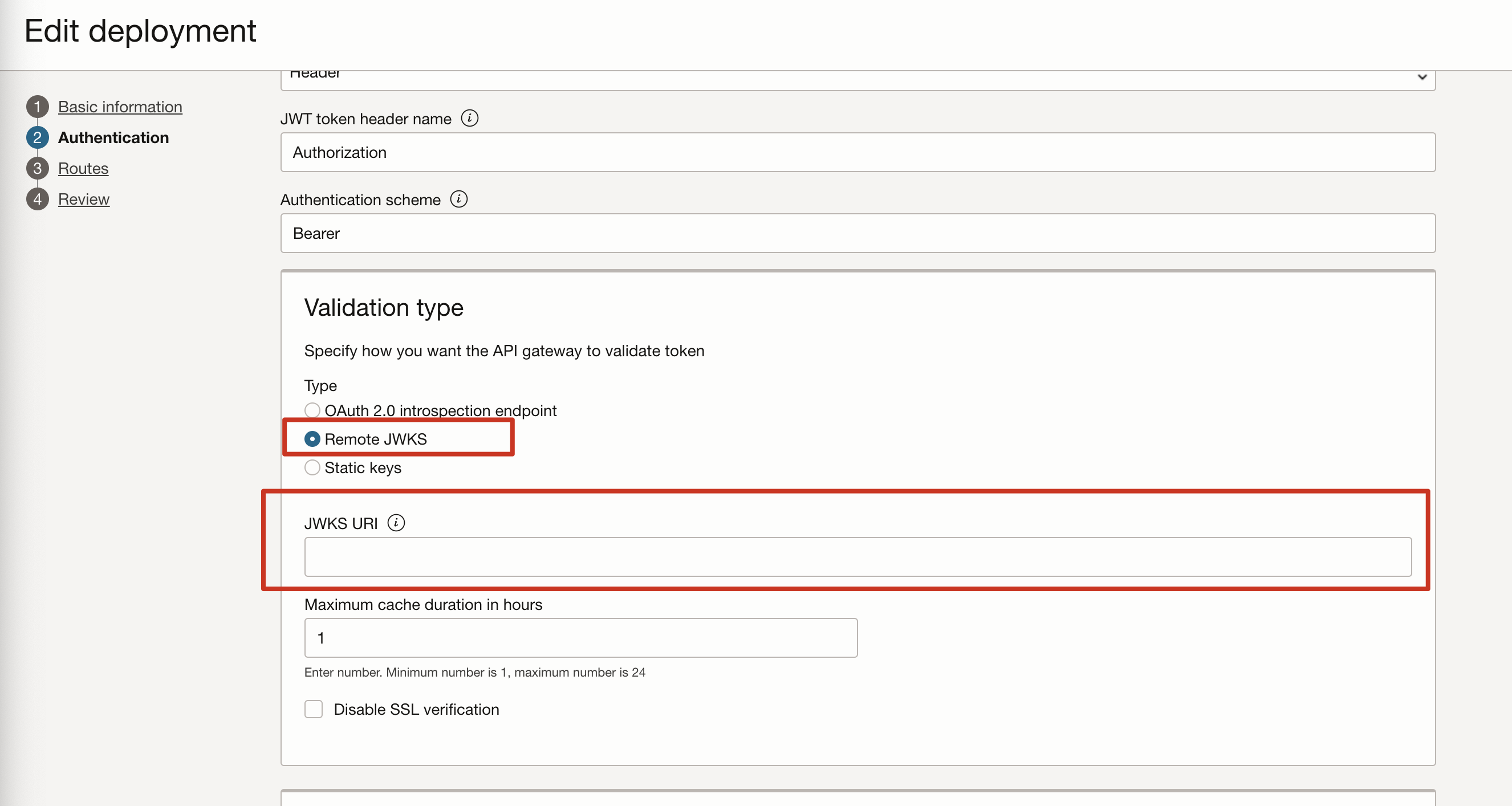

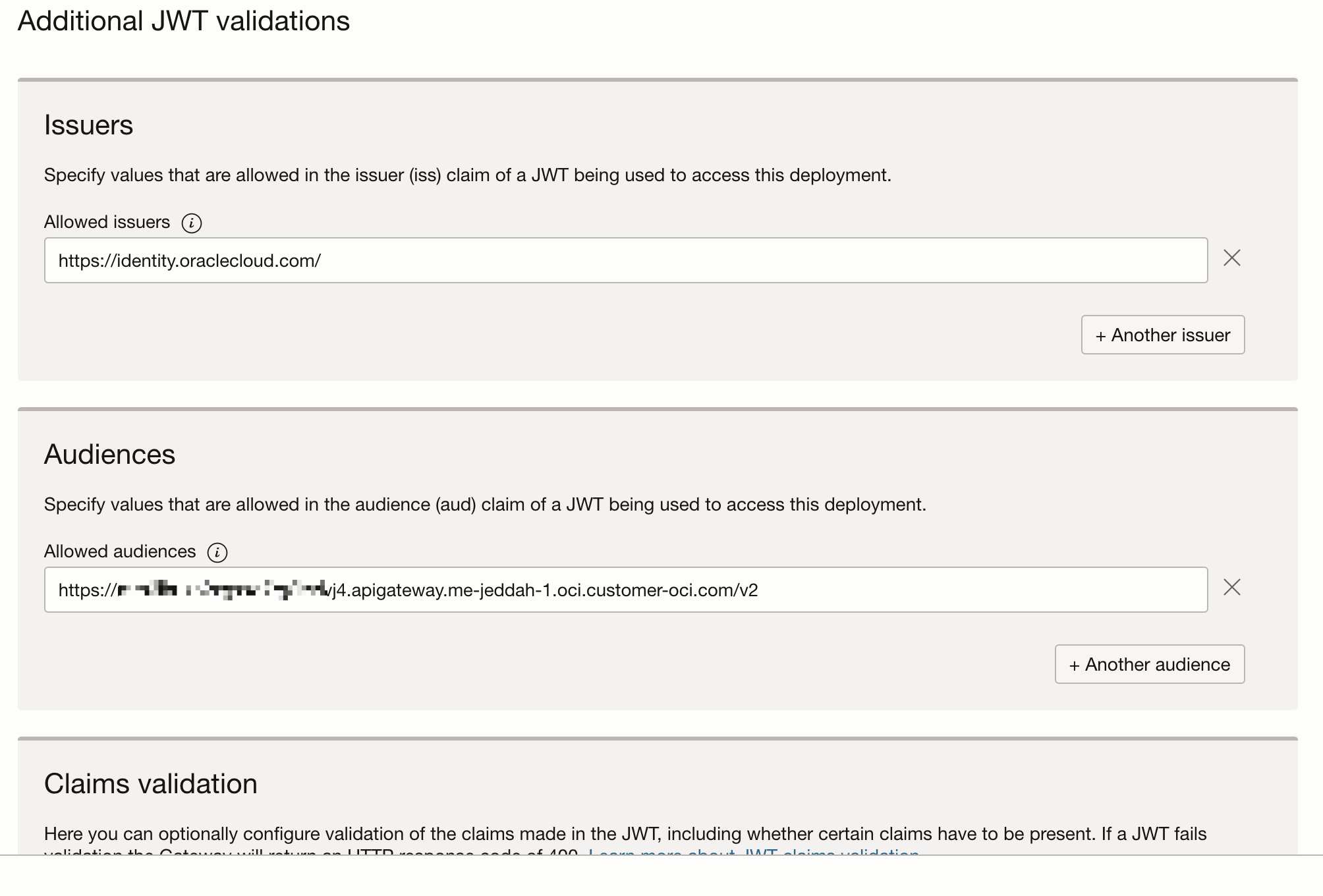

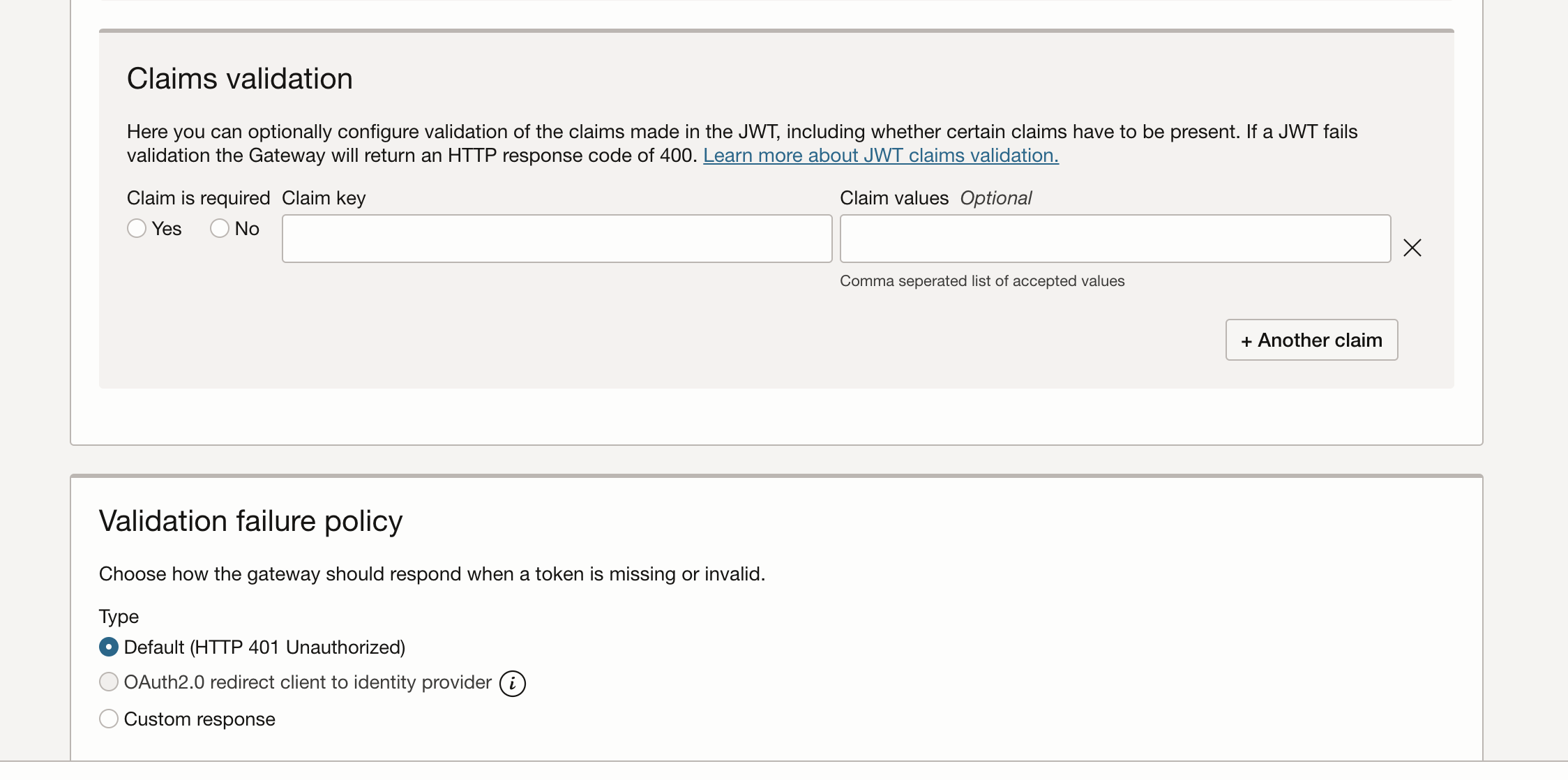

  1. Configure auth in the gateway

Creating #

  1. of type “Mobile Application”
  2. get auth code by logging in #+begin_commen https://idcs-c87b18d47f4b46798f61e82aaf3154c0.identity.oraclecloud.com/oauth2/v1/authorize?response_type=code&client_id=2c6603e5d6284b0ca29b4be97c37db25&redirect_uri=https://localhost:8001 #+end_comment

Generating Authorization and Access token #

#

Generating access token for “Client Credentials” Grant Types #

curl -X POST \
  https://idcs-c87b18d47f4b46798f61e82aaf3154c0.identity.oraclecloud.com/oauth2/v1/token \
  -H 'Content-Type: application/x-www-form-urlencoded' \
  -d 'grant_type=client_credentials&client_id=04c1e0a50787408782a5a06fb04f6522&client_secret=5ec4e132-6cb8-4499-97fe-0c444faff293&scope=https://mrh6ihukb2xgxxo7rg2lzzivj4.apigateway.me-jeddah-1.oci.customer-oci.com/v2:read'

curl -X POST \
  https://idcs-c87b18d47f4b46798f61e82aaf3154c0.identity.oraclecloud.com/oauth2/v1/token \
  -H 'Content-Type: application/x-www-form-urlencoded' \
  -d 'grant_type=client_credentials&client_id=04c1e0a50787408782a5a06fb04f6522&client_secret=5ec4e132-6cb8-4499-97fe-0c444faff293&scope=xyz:read'

Resource Owner Password Credentials Grant Type (ROPC) #

ref

 curl -i \
   -H 'Authorization: Basic <base64Encoded clientid:secret>' \
   -H 'Authorization: application/x-www-form-urlencoded;charset=UTF-8' \
   --request POST https://<domainURL>/oauth2/v1/token -d 'grant_type=password&username=<user-name>&password=<example-password>&scope=<Resource Server Scope>%20offline_access' \

# e.g.
curl -i \
  -H 'Authorization: Basic xyz' \
  -H 'Content-Type: application/x-www-form-urlencoded;charset=UTF-8' \
  --request POST https://idcs-d220cc02eba74175b82033a915b1fd89.identity.oraclecloud.com:443/oauth2/v1/token \
  -d 'grant_type=password&username=abdullah9.yousef@gmail.com&password=some-password&scope=invoicing-apis:read'

this returned the access token but this type of Auth Flow is suitable only for the s not for the browsers or mobiles or public clients

using scope as "openid invoicing-apis:read" was returning

removing it and using "invoicing-apis:read"  worked

#

shows how to setup auth for mobile client

Without PKCE #

  • Using Auth code to get the access token

    export code="AgAgMDlhODg3ZTYxNzIwNDA3ZWE2MjNiOTNmMzE3YWM5ODQIABDuuGaIWUQ6nUxFTGWEQg5OAAAAQPK6H7GhpCuUJmAEq6GR8MwVI4BgiL39FAP5 "
export cliend_id = "04c1e0a50787408782a5a06fb04f6522'"
export client_secret="5ec4e132-6cb8-4499-97fe-0c444faff293"

export auth_server="https://idcs-c87b18d47f4b46798f61e82aaf3154c0.identity.oraclecloud.com/oauth2/v1/token"

curl -X POST  $auth_server \
  -H 'Content-Type: application/x-www-form-urlencoded' \
  -d 'grant_type=authorization_code&code='$code&
  -d 'client_id='$client_id&
  -d client_secret='$client_secret

    import requests

# OAuth endpoints given in the provider's documentation
token_url = 'https://idcs-c87b18d47f4b46798f61e82aaf3154c0.identity.oraclecloud.com/oauth2/v1/token'

# Replace these values with your data
client_id = '04c1e0a50787408782a5a06fb04f6522'
client_secret = '04c1e0a50787408782a5a06fb04f6522'  # For confidential clients
authorization_code = 'AgAgMDlhODg3ZTYxNzIwNDA3ZWE2MjNiOTNmMzE3YWM5ODQIABDuuGaIWUQ6nUxFTGWEQg5OAAAAQPK6H7GhpCuUJmAEq6GR8MwVI4BgiL39FAP5-wTWt--D162nSfoW8FoytoifDgOgciZLKrwVvtqayrarEugtho0=!'
redirect_uri = 'https://localhost:8001'

# Prepare the data for the token request
token_data = {
    'grant_type': 'authorization_code',
    'code': authorization_code,
    'redirect_uri': redirect_uri,
    'client_id': client_id,
    'client_secret': client_secret  # Include for confidential clients
}

# Make the POST request
response = requests.post(token_url, data=token_data)

# Check for successful response
if response.status_code == 200:
    # Parse the JSON response
    token_info = response.json()
    access_token = token_info.get('access_token')
    print('Access Token:', access_token)
else:
    print('Failed to obtain access token. Status code:', response.status_code)

With #

  • Using Auth code to get the access token

refresh-token #

add “offline_access” scope to return refresh token as well. ref

the integrated application should be configured to return refresh token as well.


def user_access_token(self, username, password, scope="urn:opc:idm:__myscopes__"):
    url = f"DOMAIN_URL/oauth2/v1/token"
    client_id_secret = f"self.client_id:self.client_secret"
    base_64_encoded = base64.b64encode(client_id_secret.encode()).decode()
    headers =
        "Content-Type": "application/x-www-form-urlencoded;charset=UTF-8",
        "Authorization": f"Basic base_64_encoded",

    data =
        "grant_type": "password",
        "scope": scope + " offline_access", # offline access token is needed for refresh token
        "username": username,
        "password": password,

    response = requests.post(url, headers=headers, data=data)
    return response
