API Gateway in OCI

tags :

API Gateway in OCI #

ref

The API Gateway service enables you to publish

• APIs with private endpoints that are accessible from within your network, and
• which you can expose with public IP addresses if you want them to accept internet traffic.
• The endpoints support
  • API validation,
  • request and response transformation,
  • CORS,
  • Authentication and Authorization, and
  • request limiting.

Using the API Gateway service, you create one or more

• API gateways in a regional subnet to process traffic from API clients and

• route it to back-end services.

  You can use a single API gateway to link multiple back-end services

  • such as Load Balancer
  • compute instances, and
  • Functions in OCI into a single consolidated API endpoint.

Deployments #

• Base urls or backend endpoints can be configured here that gateway will redirect to

Basic information #

Routes #

• request Validations
• Header Transformation

select HTTP method and configure backend URL to redirect to.

• It is possible to add context variables

Authentication #

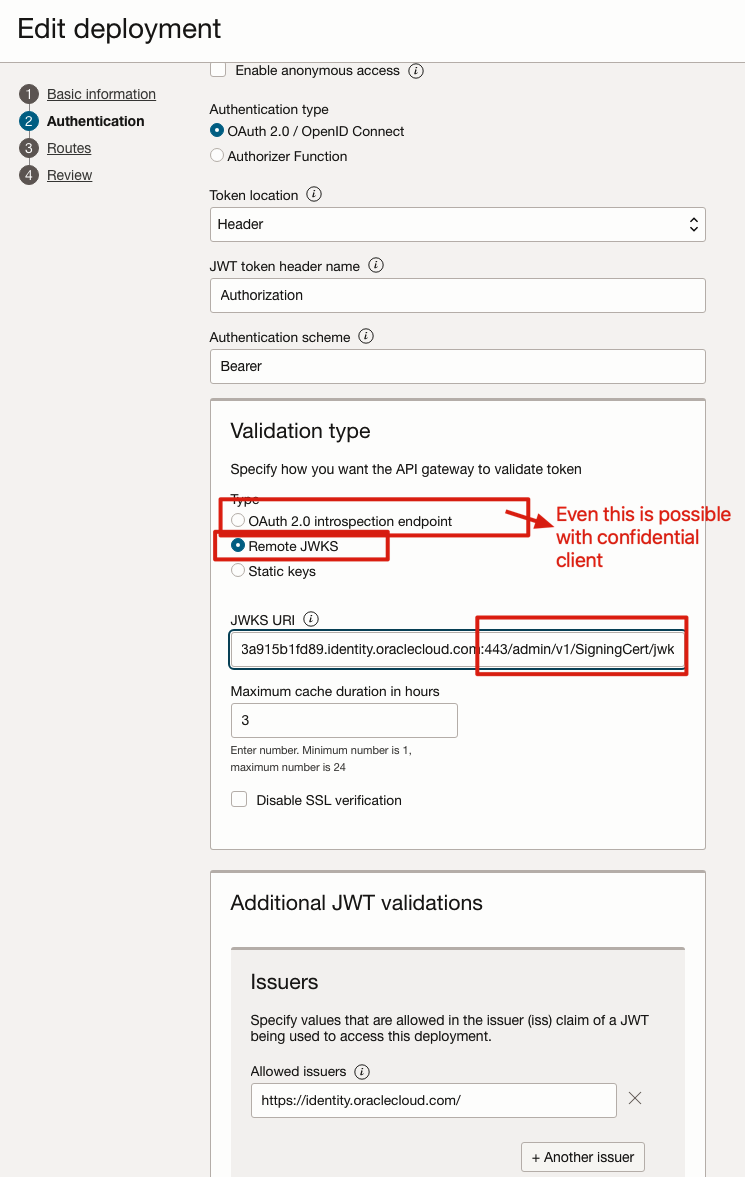

The gateway endpoint can be authenticated with JWT OAuth2 and there three options to validate the access token.

JWT Token Verification Methods in OCI Gateway #

tags

Use Cases, Security

• OAuth2 Introspection

  • Mechanism: Sends token to the introspection endpoint of the OAuth server, which returns token information.
  • Security Considerations: Highly secure, real-time token status validation.
  • Use Case: Best for scenarios requiring real-time token validation, especially when token revocation is a concern.
  • Considerations: Introduces latency due to extra network call; relies on endpoint availability.

• Remote JWKS

  • Mechanism: Dynamically retrieves public keys from the JWKS endpoint of the authorization server.
  • Security Considerations: Secure, adapts to key rotations.
  • Use Case: Ideal for scenarios where the authorization server supports JWKS and key rotation is frequent.
  • Considerations: Requires JWKS endpoint availability; minor latency in key retrieval.

• Static Keys

  • Mechanism: Uses pre-configured keys within the API Gateway for validation.
  • Security Considerations: Secure but less flexible; vulnerable if keys are compromised and not updated promptly.
  • Use Case: Suitable when the authorization server doesn’t provide JWKS or introspection, or when minimizing network calls is a priority.
  • Considerations: Requires manual key updates; not ideal for dynamic environments.

Adding Authorization or access control to API Gateway in OCI #

Create Integrated Application with “Confidential Application” type #

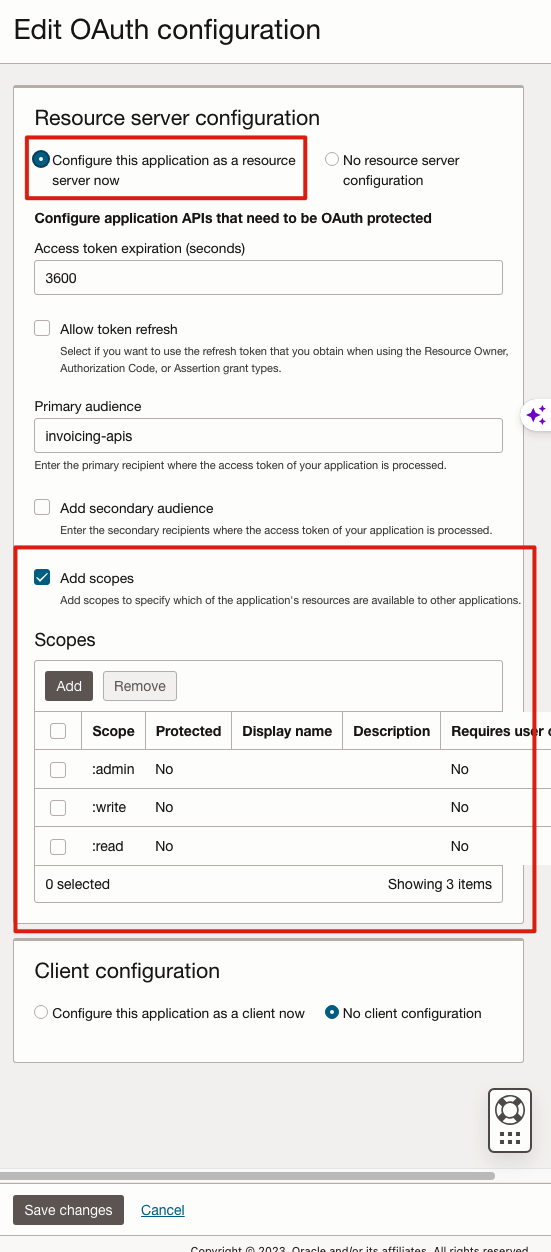

Add resource server configuration

JWKS format: “$var.domain_url/admin/v1/SigningCert/jwk”

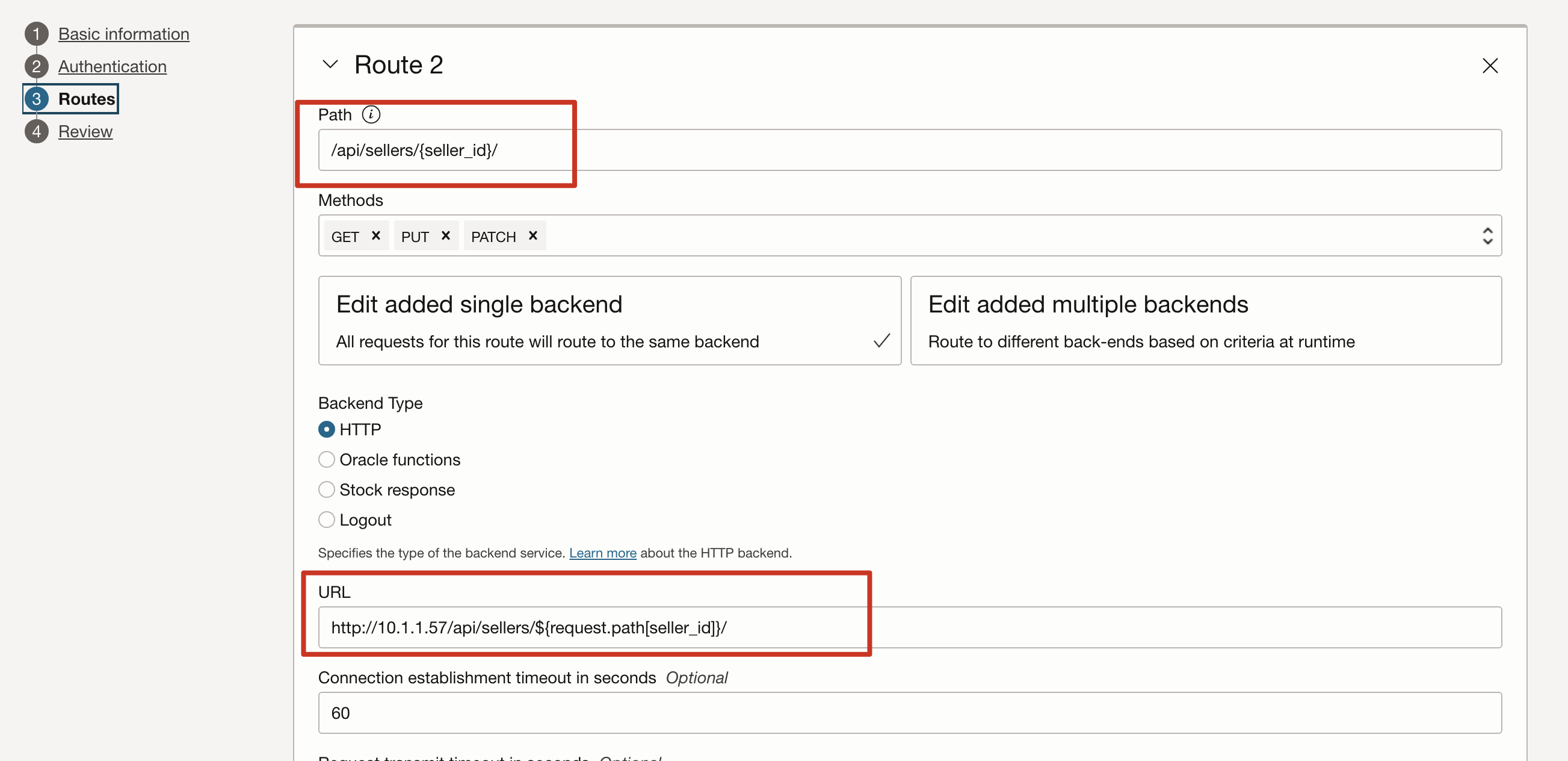

Adding dynamic route with ID #

ref

Path: api/sellers/seller_id backend URL: http://10.1.1.57/api/sellers/$request.path[seller_id]/

Adding dynamic parameters or paths #

ateam-oracle blog
